Testhandlers - A new approach of testing solutions

Microtec offers a wide variation of customizable gravity handlers. The focus of our systems is based on the approach to provide 1 system for many different applications. By pursuing continuous improvements and setting the objective to provide our customers the most convincing test handlers, we are always driven to push our products and its features to the limits and exceed traditional boundaries.

  • Quick installation – easy-to-use device handling
  • Reliable technology, evolving over the last 20 years
  • -60 °C to +175 °C (-76 °F to +347 °F) temperature testing with Thermostream or 3rd party temperature thermal systems
  • Wide range of modifications and customizations – We will customize our docking applications to your test-field requirements. From Sockets, Testboards to Testhead interfaces
  • Low maintenance and capital invest

We are pleased to adapt our handling systems to your individual requirements

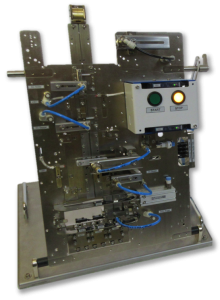

MH 200 EVO - Mini Desktop Handler

The MH200 EVO gravity testhandler is designed to provide best price/performance ratio for small lot testing and lab-environment applications. The small footprint allows a setup on a table or directly on test equipment and is ideal for testing 10,000-50,000 units per week.

Utilizing a new approach of mechanical layout it allows to provide most flexibility on the test-field, by including 3rd party equipment and customized docking mechanisms.

Furthermore, the MH200 can be equipped with a temperature cover to provide testing temperatures from -60°C up to 175°C.

The scalability of this small Testhandler also allows to go into full production mode by upgrading the base unit with bowl feeder input or tape & reel outputs, allowing to provide a automatic testsystem with temperature testing for lowest capital invest.

  • QFN 2x2mm up to DIL 31x15mm
  • Dimension: 340 x 300 x 400 mm (Mechanical Unit)
  • Full tri-Temp range from -60°C to +175°C
  • 3rd party equipment implemenation (camera, sensors, scanners)
  • Various setup & docking options
  • Modular combinations from different Inputs and Outputs (Bowl,Tube,T&R)
  • Straight forward Contact solutions (RPTB,HF,KELVIN)

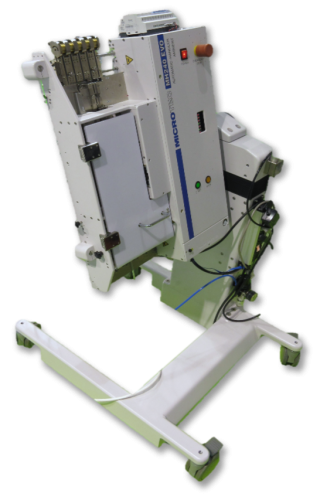

MH 240 EVO - Engineering & Production Gravity Handler

The MH240 EVO gravity testhandler is based on the popular MH2XX series from Microhandling Handhabungsgeräte GmbH. This fast convertible device handler was initially designed for ambient operation, but also includes the option to utilize temperature applications since year 2018.

The possibility to integrate 3rd party equipment like programmer tools, device marking or labeling units makes the usability cases near endless.

The easy conversion from one kit to another is done withing 10 minutes.

Common available package types are SO, TSSOP, QSOP, VSOP, SSOP, SOT, SOJ, TO, DIP, SIP, ZIP, PLCC, LCC, MLP, QFN and others.

  • QFN 2x2mm up to DIL 31x15mm
  • Up to 9 Tube Input / 5 Tube Output
  • Dimension: 340 x 300 x 400 (Mechanical Unit)
  • Full tri-Temp range from -60°C to +175°C
  • 3rd party equipment implemenation (camera, sensors, Scanners)
  • Modular combinations from different Inputs and Outputs (Bowl,Tube,T&R)
  • Straight forward Contact solutions (RPTB,HF,KELVIN)
  • Stand-alone mobile support with adjustment for slope angle and height

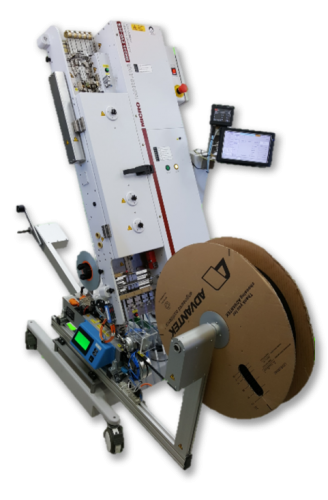

MH 245 EVO - Ambient/Hot Chamber - Gravity Production Handler

The MH245 EVO gravity testhandler is based on the popular MH2XX series from Microhandling Handhabungsgeräte GmbH. This fast convertible device handler can provide temperatures up to +165°C.  The long soak chamber track allows quick heating of devices controlled by several sensors throughout the chamber. No additional equipment is required for temperature. The possibility to integrate 3rd party equipment like programmer tools, device marking or labeling units makes the usability cases near endless.

The easy conversion from one kit to another is done withing 10 minutes.

Common available package types are SO, TSSOP, QSOP, VSOP, SSOP, SOT, SOJ, TO, DIP, SIP, ZIP, PLCC, LCC, MLP, QFN and others.

  • QFN 2x2mm up to DIL 31x15mm
  • Up to 9 Tube Input / 5 Tube Output
  • Dimension: 340 x 300 x 400 (Mechanical Unit)Temperature range up to +175°C
  • 3rd party equipment implemenation (camera, sensors, Scanners)
  • Modular combinations from different Inputs and Outputs (Bowl,Tube,T&R)
  • Straight forward Contact solutions (RPTB,HF,KELVIN)
  • Stand-alone mobile support with adjustment for slope angle and height

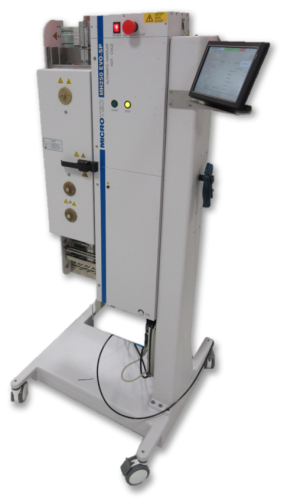

MH 250 EVO - Ambient/Hot/Cold Chamber - Gravity Production Handler

The MH250 EVO gravity testhandler is based on the popular MH2XX series from Microhandling Handhabungsgeräte GmbH. This fast convertible device handler can provide temperatures from -60°C up to +165°C.  The long soak chamber track allows quick heating & cooling of devices controlled by several sensors throughout the chamber. No additional equipment is required for hot test. Cold air supply is required via external Thermostream. The possibility to integrate 3rd party equipment like programmer tools, device marking or labeling units makes the usability cases near endless.

The easy conversion from one kit to another is done withing 10 minutes.

Common available package types are SO, TSSOP, QSOP, VSOP, SSOP, SOT, SOJ, TO, DIP, SIP, ZIP, PLCC, LCC, MLP, QFN and others.

  • QFN 2x2mm up to DIL 31x15mm
  • Up to 9 Tube Input / 5 Tube Output
  • Dimension: 340 x 300 x 400 (Mechanical Unit)
  • Full tri-Temp range from -60°C to +175°C
  • 3rd party equipment implemenation (camera, sensors, Scanners)
  • Modular combinations from different Inputs and Outputs (Bowl,Tube,T&R)
  • Straight forward Contact solutions (RPTB,HF,KELVIN)
  • Stand-alone mobile support with adjustment for slope angle and height
